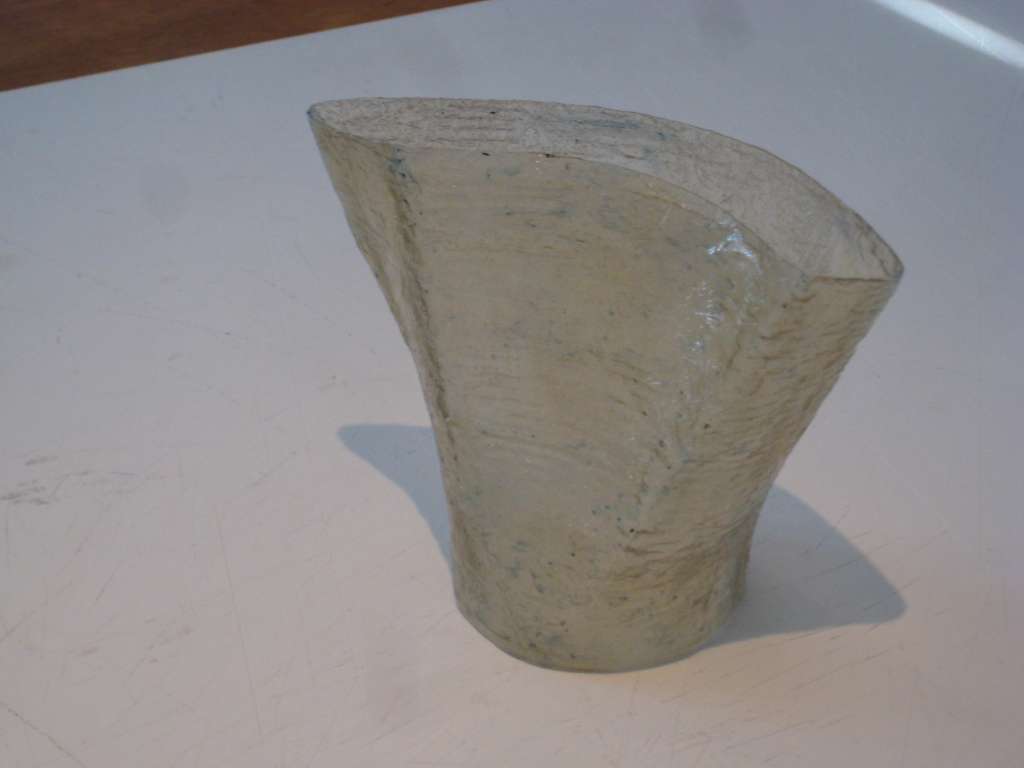

Adapter pieces for brake cooling inlets are now put into production.

Two prototype parts have been produced in-house to test the process.

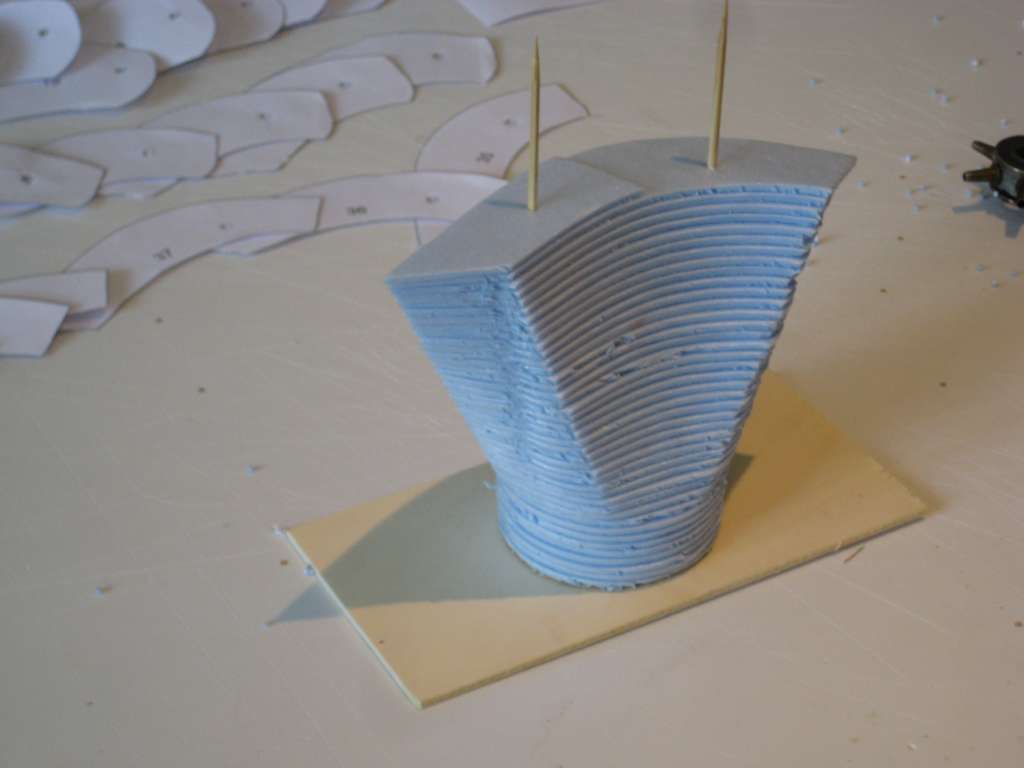

The shapes and dimensions have been taken from the 3-D CAD models by means of cutting out and stacking cross sections of the models.

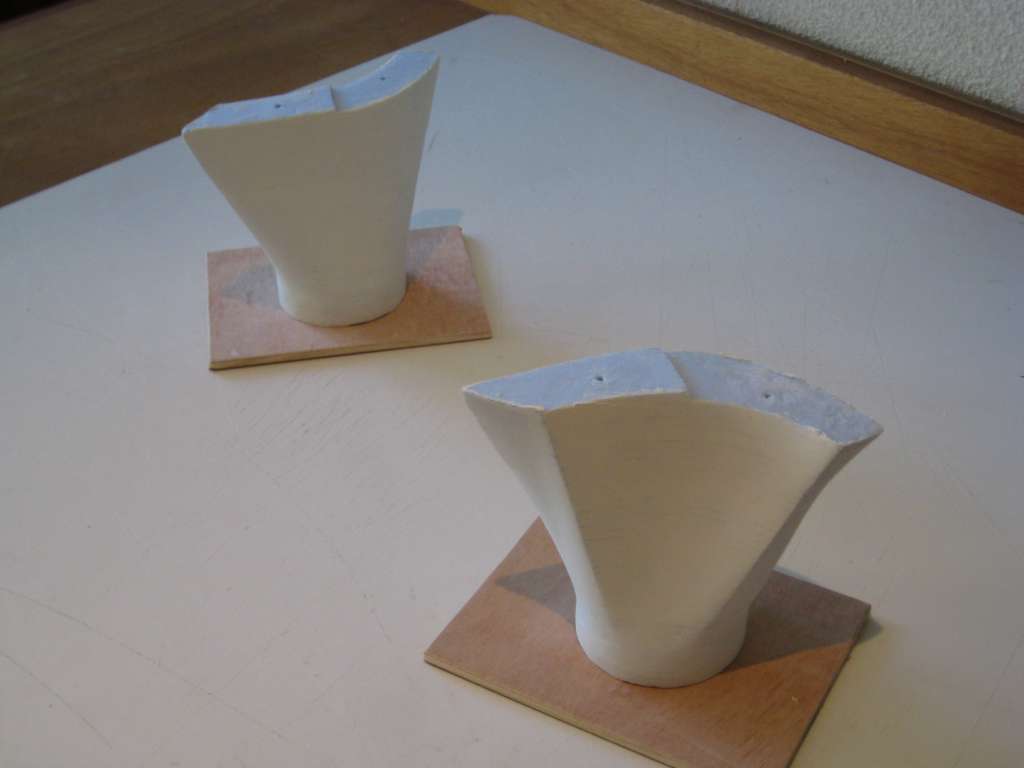

After filling and sanding, the plugs were then used for hand lay-up and curing under vacuum.


Using the lessons learnt from the prototype production, a number of small body parts will be produced to complement the body panels currently in production by Aviate Products.


For more information, contact us at
