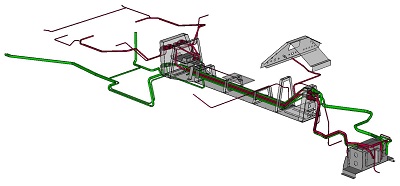

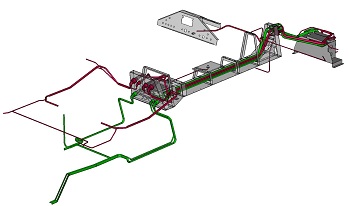

The lay-out and routing of the wiring looms were modelled in 3D.


Wiring looms are roughly divided into forward, central and aft sections.

The sections are connected at the bulkheads by means of circular multipole connectors. The connectors were selected for the specific duty and current capacity.
